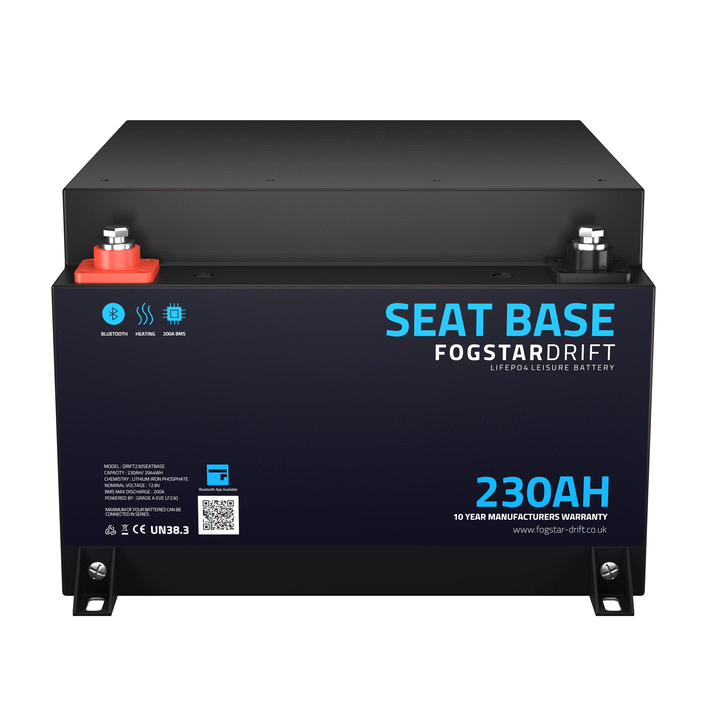

Seat Base Lithium Leisure Battery - Fogstar Drift 12v 230Ah

Product Code: Seat Base Lithium Leisure Battery - Fogstar Drift 12v 230Ah

Brand: Fogstar

Product Features

  • Cell Chemistry: Lithium Iron Phosphate
  • Cell Type: Grade A EVE LF230
  • Cycle Life: 4000 @ 80% DOD
  • Nominal Voltage: 12 Volt
  • Nominal Capacity (20hr rate): 230 Ah
Show More
Please enquire
Product Description

If you're looking for a more compact option to power your campervan, look no further than the Seat Base 12.8v 230Ah Lithium Leisure Battery. This genius Seat Base battery is designed to fit snugly under the base of your seats – convenient and space-saving.

The dimensions of our Drift Seat Base is 275 (L) x 315 (W) x 187.5 (H) - making it one of the most compact variations of Seat Base Lithium Leisure Battery on the UK market.

  • Designed & Supported in the UK: Expertly engineered by our award-winning UK-based team and supported by our UK-based customer service team.
  • Ultra-Compact Design: With dimensions of just 275mm x 315mm x 187.5mm, this space-saving battery is tailor-made to fit under standard seats.
  • Powerful & Efficient: Despite its compact footprint, the battery delivers a robust 2,944Wh of energy, making it a powerhouse in a small package.
  • Long-Lasting Performance: Built with Grade A EVE LiFePO4 cells, the Seat Base offers 4000 cycles at 80% depth of discharge, giving you 10–15 years of dependable service.
  • 10 Year Warranty: Backed by a comprehensive 10-year warranty.
  • Advanced 200A JBD BMS: Featuring a high-discharge 200A JBD Battery Management System.
  • Integrated Heating: Automatic low-temperature heating system is built in to keep the battery performing reliably even in colder environments — perfect for year-round adventures.
  • Bluetooth Monitoring: Monitor performance in real-time using the Fogstar Drift App, available free for Android and iOS. Check state of charge, cell voltage, temperature, and more — anytime, anywhere.
  • On/Off Hibernation Switch: A manual hibernation switch gives you quick control over your battery, allowing you to power down the system without needing to access the app.
  • Optional 2A Active Balancer Input: Includes a dedicated port for the Fogstar Drift (JK) 2A Active Balancer, allowing advanced users to fine-tune performance if needed. Thanks to matched and balanced internal cells, balancing is rarely required — but it’s there if you want it.
Product Specification
Cell Chemistry Lithium Iron Phosphate
Cell Type Grade A EVE LF230
Cycle Life 4000 @ 80% DOD
Nominal Voltage 12 Volt
Nominal Capacity (20hr rate) 230 Ah
Length 275 mm
Width 315 mm
Total Height 187.5 mm
Weight 25 kg
Show More
