Pylontech US5000 - 48V 4.8kWh Lithium Battery

Product Code: Pylontech US5000 - 48V 4.8kWh Lithium Battery

Brand: Pylontech

Product Features

  • Nominal Voltage: 48 Volt
  • Nominal Capacity (Wh): 4800
  • Useable Capacity (Wh): 4560
  • Communication Port: CAN, RS485
Show More
Please enquire
Product Description

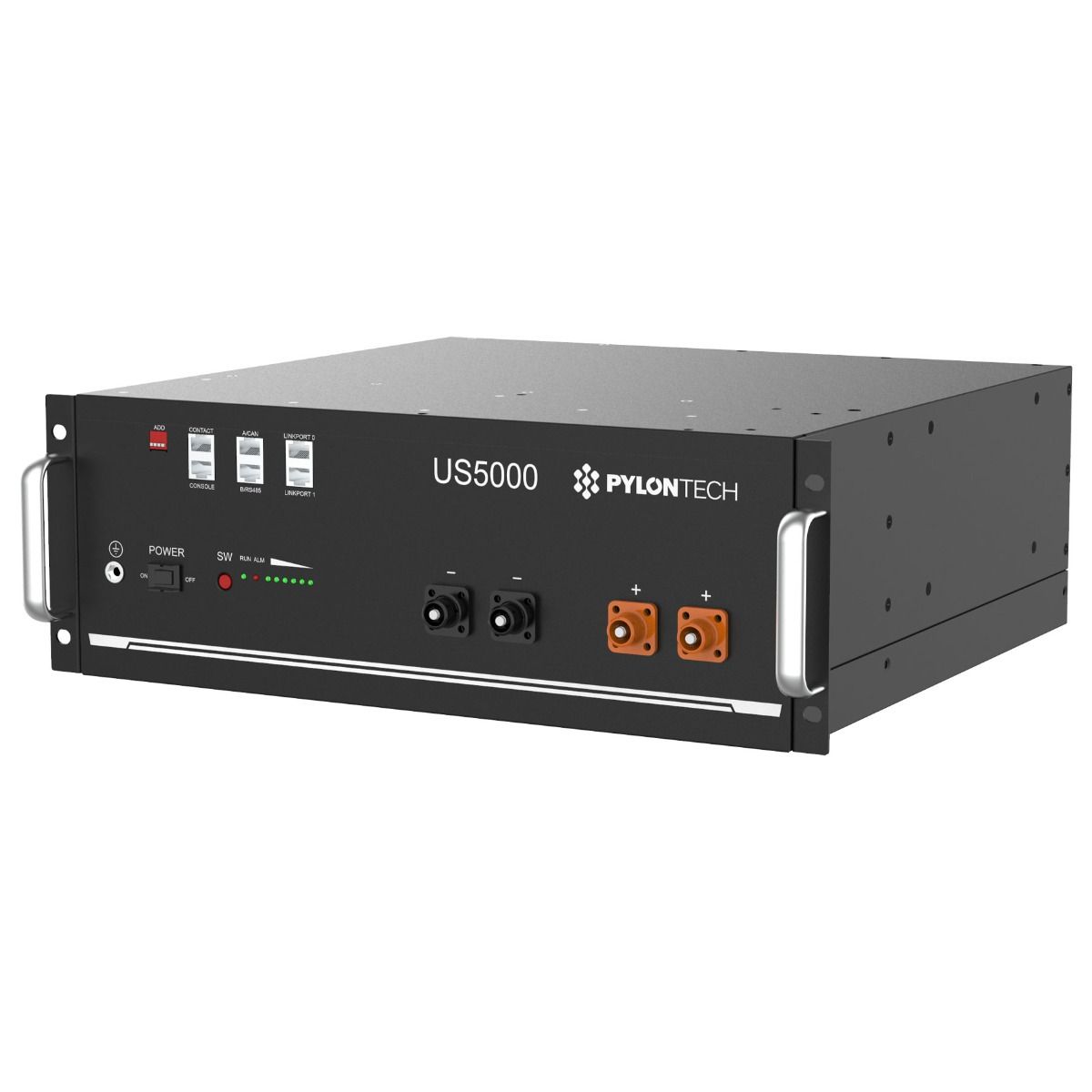

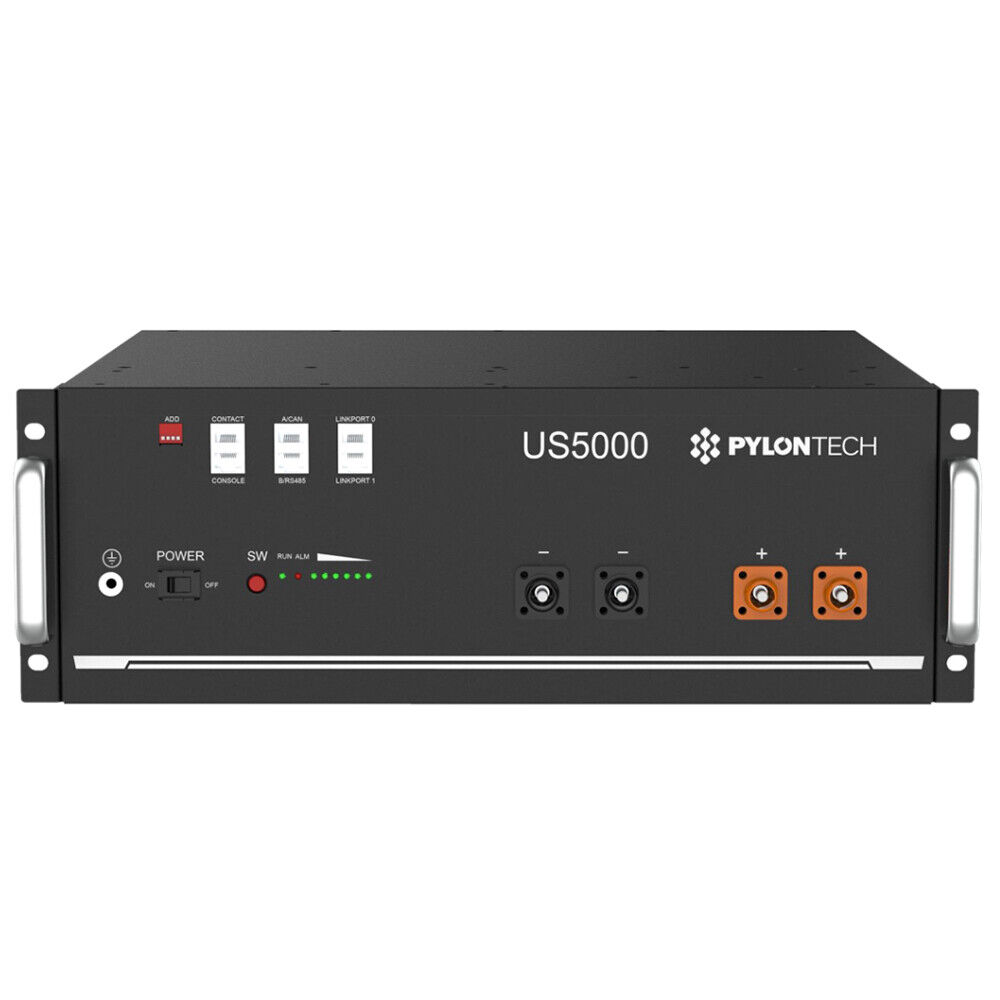

Pylontech US5000 - 48V 4.8kWh Lithium Battery

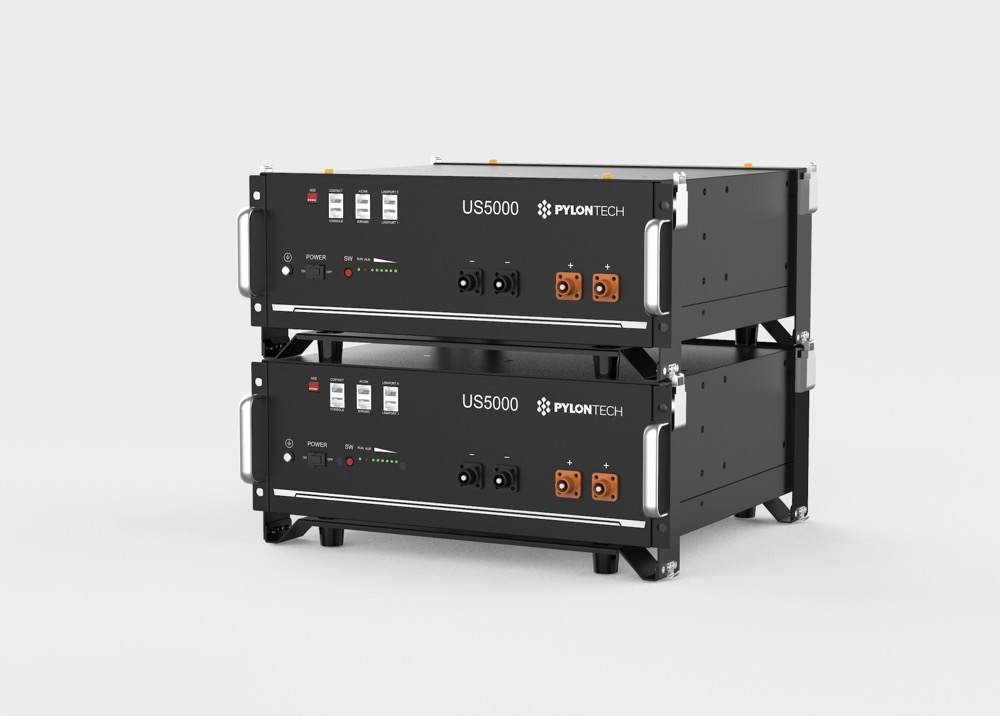

A new battery in the US series from Pylontech. The US5000 is a 48V Lithium Ion battery with incredible features to provide a competitive edge in the market. US5000 is the latest Pylontech 48V battery with a much bigger capacity at 4.8kWh modular and has many stronger features like, High current strike endurance, Dual active protection, Remote upgrade feature and can be connected up to 16 modules per single string giving 76.8KWh and up to 384KWh when 5 strings connected via a Pylontech LV-Hub

The Intelligent Battery Management System (BMS) ensures the protection of battery cells and offers an impressive 95% depth of discharge and a life cycle of 6000 cycles.


Product Specification
Nominal Voltage 48 Volt
Nominal Capacity (Wh) 4800
Useable Capacity (Wh) 4560
Communication Port CAN, RS485
Single String Qty 16 units
Working Temperature °C 0 ~ 50
Cycle Life > 6000
Nominal Capacity (20hr rate) 100 Ah
Technology Lithium-ion (LiFePO4)
Dimensions (mm) L x W x H 442 x 420 x 161
Weight 39.7 kg
