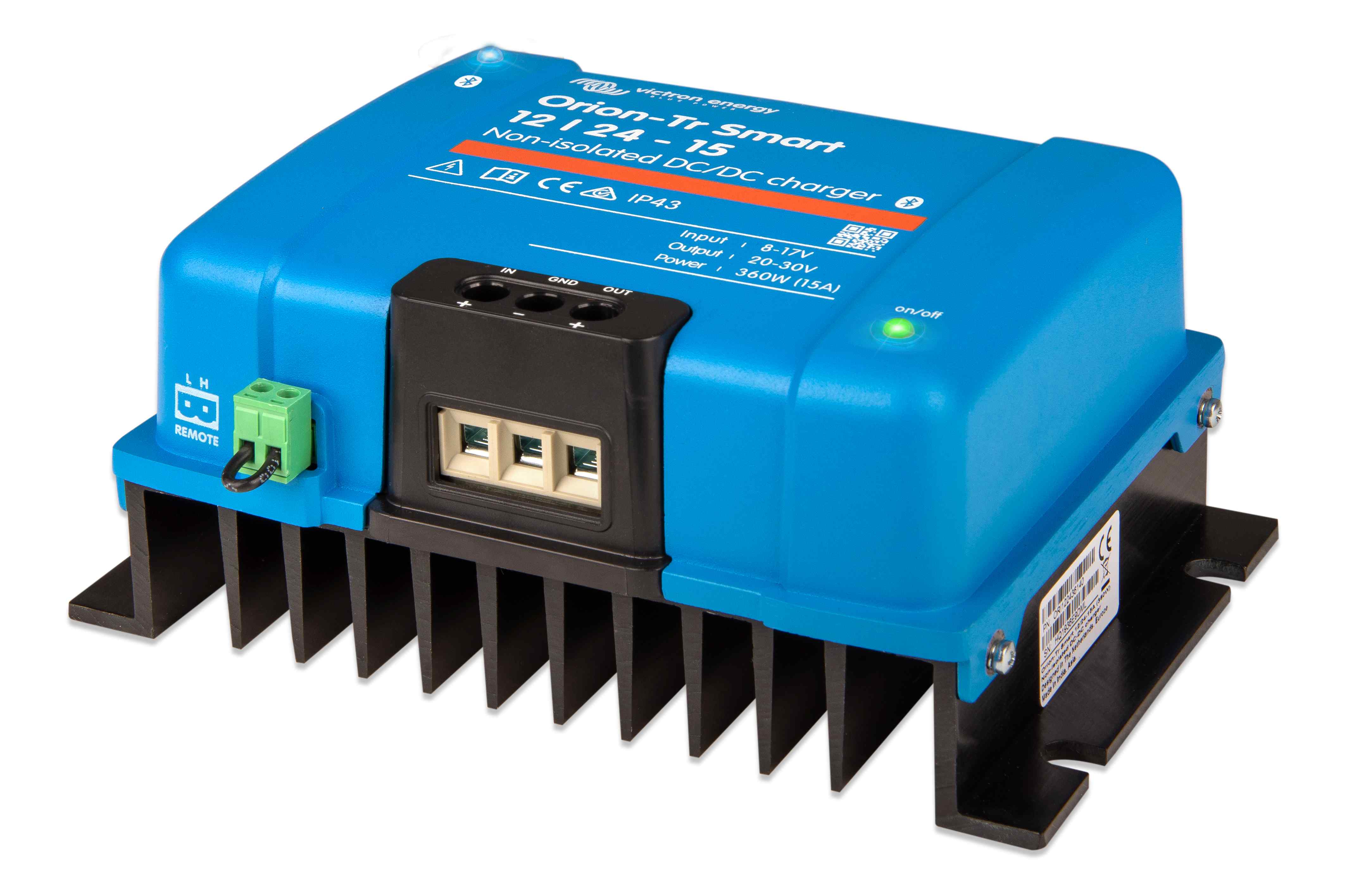

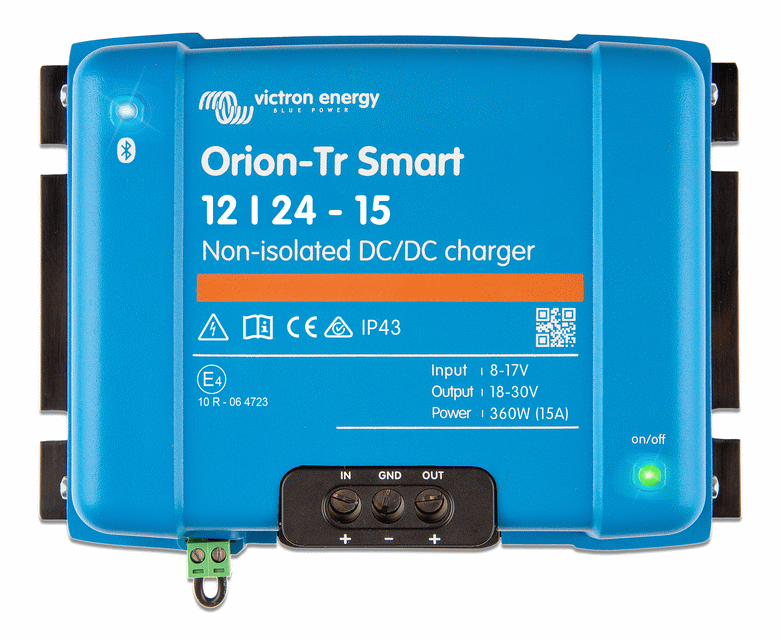

Orion-Tr Smart 12/24-15A Non-isolated DC-DC charger

Product Code: Orion-Tr Smart 12/24-15A Non-isolated DC-DC charger

Brand: Victron Energy

Product Features

  • Output current: 15A
  • Input Voltage range: 10-17V
  • Output voltage: 20-30V
  • Maximum efficiency: 88%
  • Victron Part Number: ORI122436140
Show More
Please enquire
Product Description

Victron Orion-Tr Smart 12/24 15A Non-isolated DC-DC charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

High temperature protected
The output current will reduce at high ambient temperature.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)



    Product Specification
    Output current 15A
    Input Voltage range 10-17V
    Output voltage 20-30V
    Maximum efficiency 88%
    Victron Part Number ORI122436140
    Dimensions (mm) L x W x H 130 x 186 x 80 mm
    Weight 1.8 kg
