BlueSolar Polycrystalline 30W Panel

Product Code: BlueSolar Polycrystalline 30W Panel series 4a

Brand: Victron Energy

Product Features

  • Nominal Power PMPP: 30 W
  • Max-Power Current: 1.66 A
  • Open-Circuit Voltage Voc: 21.8 V
  • Cell type: Polycrystalline
  • Number of cells in series: 36
Show More
Please enquire
Product Description

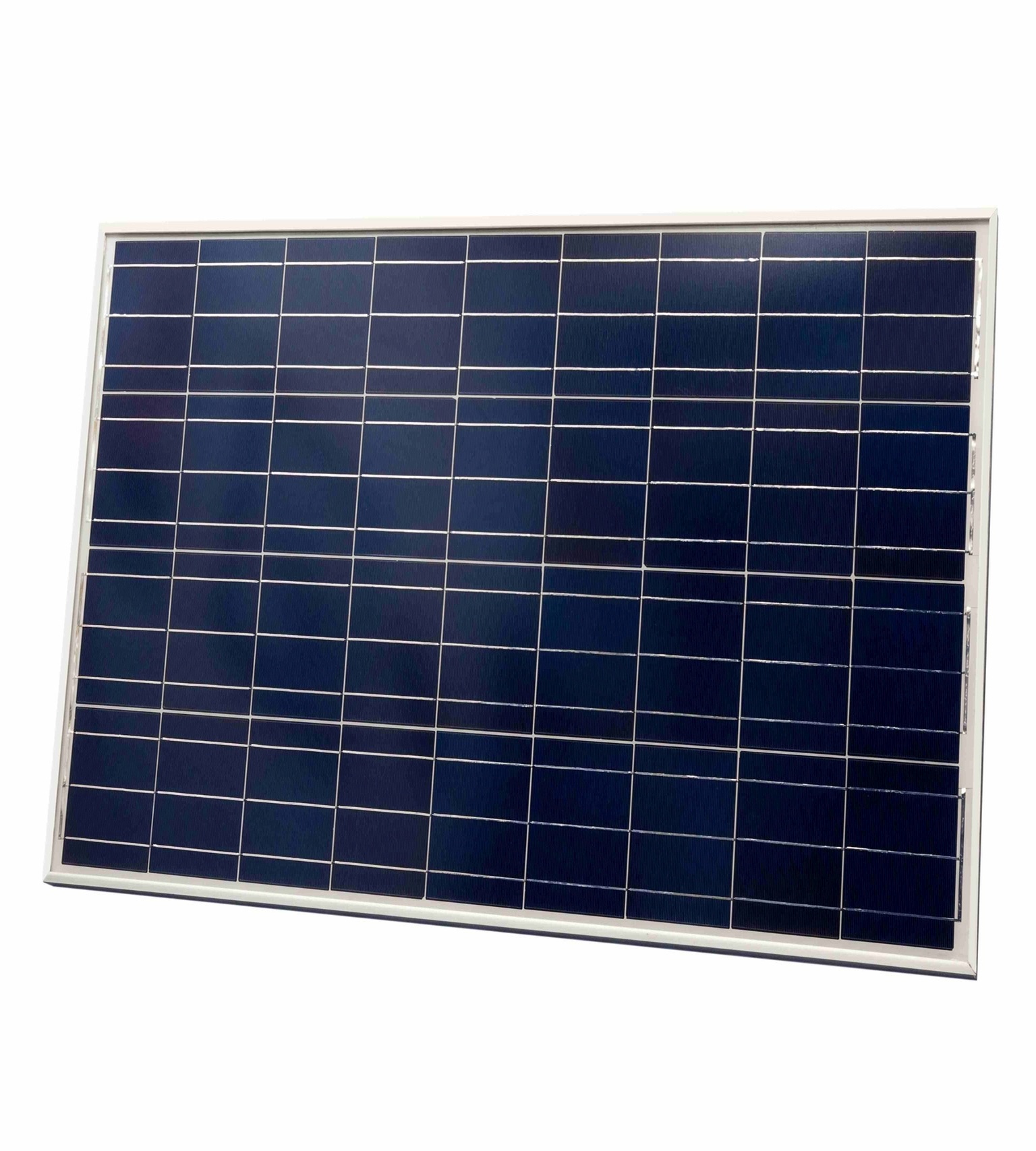

Victron BlueSolar Polycrystalline 30W Panel series 4a

The Victron BlueSolar Monocrystalline Rigid Glass Solar Panel from Victron Energy is of the highest quality. The high-transmission tempered glass provides enhanced stiffness and impact resistance. A sturdy, anodized aluminium frame allows modules to be easily roof mounted with a variety of standard mounting systems.

The BlueSolar panels have an exceptional low-light performance and a high sensitivity to light across the entire solar spectrum. When the panels are shaded, the high performance bypass diodes minimize the power drop caused by the shade. The BlueSolar panels from Victron Energy have a 25-year limited warranty on power output and performance.

PRODUCT KEY FEATURES

Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

    Product Specification
    Nominal Power PMPP 30 W
    Max-Power Current 1.66 A
    Open-Circuit Voltage Voc 21.8 V
    Cell type Polycrystalline
    Number of cells in series 36
    Length of cable No cable
    Frame Aluminium
    Weight (Kg) 2.8
    Dimensions (mm) L x W x H 655 x 350 x 25
    Warranty 5 Year
    Show More
