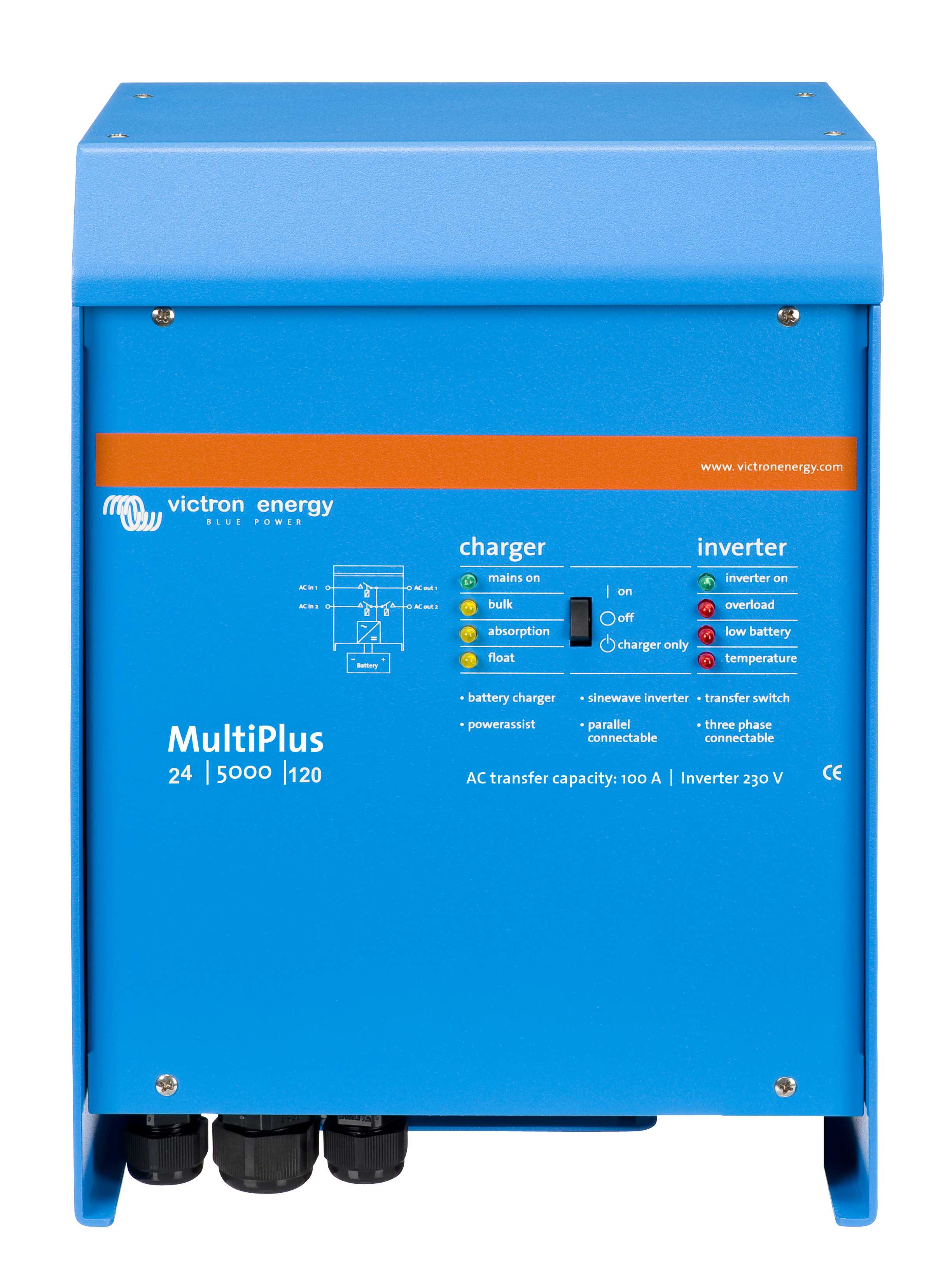

Victron MultiPlus 24/5000/120
Multiplus 24V |5000VA | 120Amp (100A AC Transfer) Inverter/Charger
The Victron MultiPlus 24/5000/120 100A 230V Inverter/Charger, often called a Combi Unit combines a pure sinewave inverter, intelligent battery charger and automatic transfer switch in one compact enclosure.
A Combi unit provides many benefits over individual units. In the event of a loss of mains/shore power the inverter will be automatically activated to continue supply to the connected loads. The MultiPlus can also boost weak mains/shore power supplies with PowerAssist. This can be used to supplement the mains/shore power during times when large loads might ordinarily trip the supply.
Multi-functional
The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure. Models range from 800VA to 5000VA per module.
Unique PowerAssist feature
The MultiPlus will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC power (UPS function)
In the event of a grid failure or shore or generator power being disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Features:
- UPS capability
- Parallel or 3 phase operation
- PowerControl
- PowerAssist
- Multi stage adaptive battery charging
- Independent output for engine start battery
