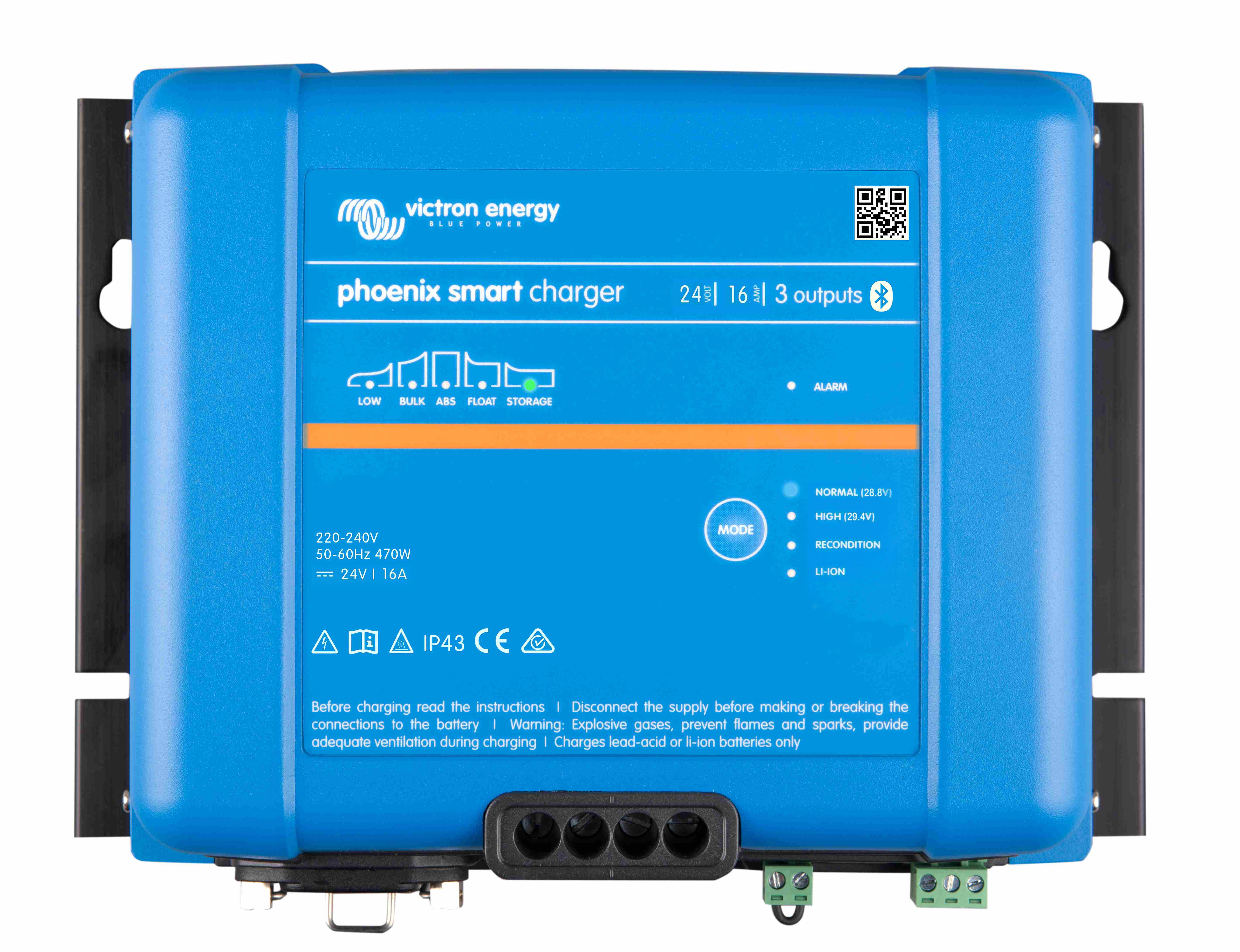

Victron Phoenix Smart IP43 Charger 24/16(3) 230V
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Three full current outputs to charge 3 battery banks
Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger.
Adaptive 5-stage chargealgorithm: bulk-absorption-recondition-float-storage
The Phoenix Smart Charger features our well-known "adaptive" battery management system that can be preset to suit different types of batteries. The "adaptive" feature will automatically optimise the charge process relative to the way the battery is being used.
BatterySafe mode. Preventing damage due to excessive gassing:
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.
Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.Three preprogrammed algorithms can be selected with the mode button (see specifications).

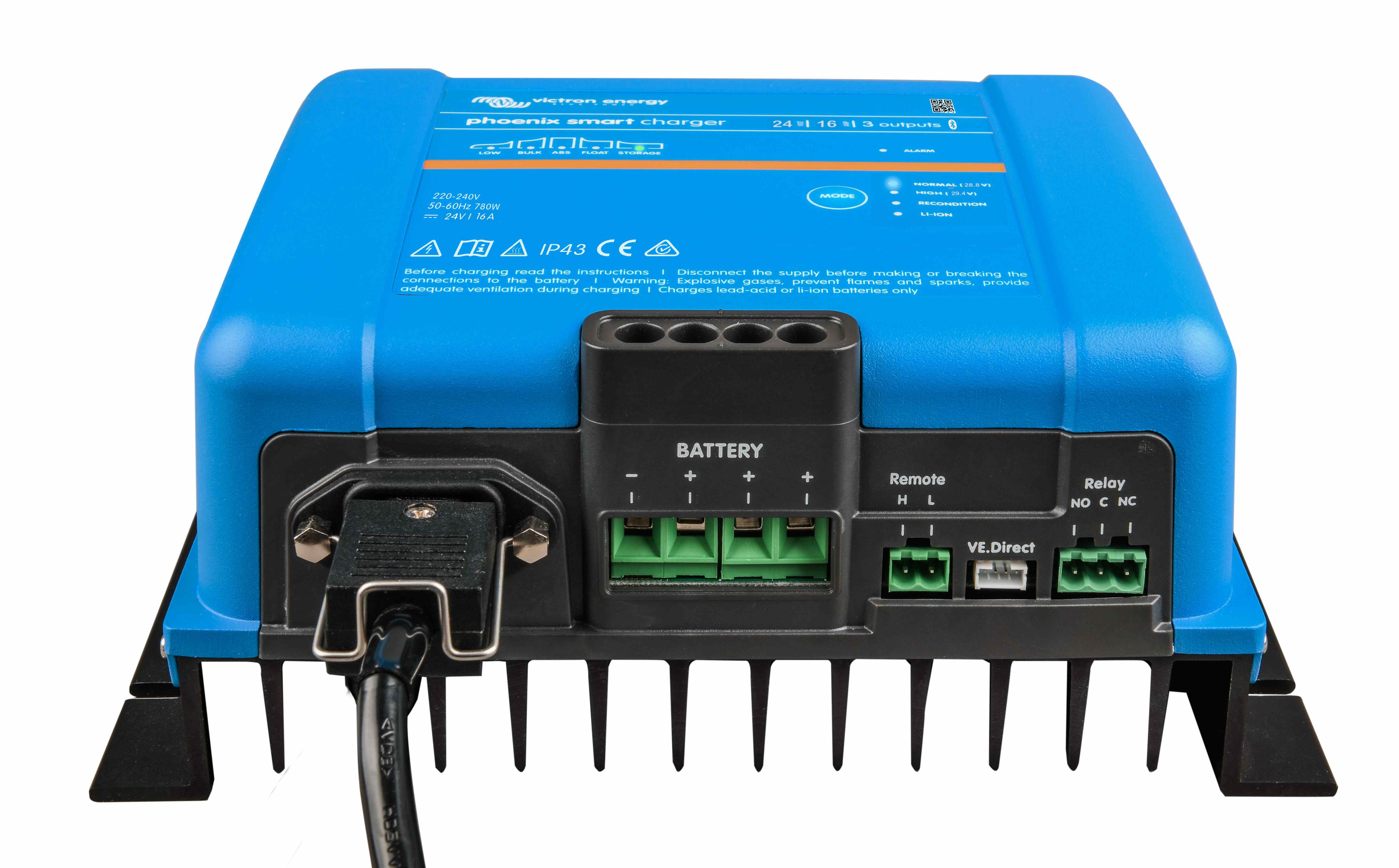

Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.
VE.Direct interface
For a wired data connection to a Color Control panel, PC or other devices. Please see the VictronConnect app under Downloads / Software on our website.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled deviceto trip on an alarm or other events.
|
